Mike Mackowski's Mir Build
Core SA Pix
This is how I painted the core solar panels. Home | Previous | Next

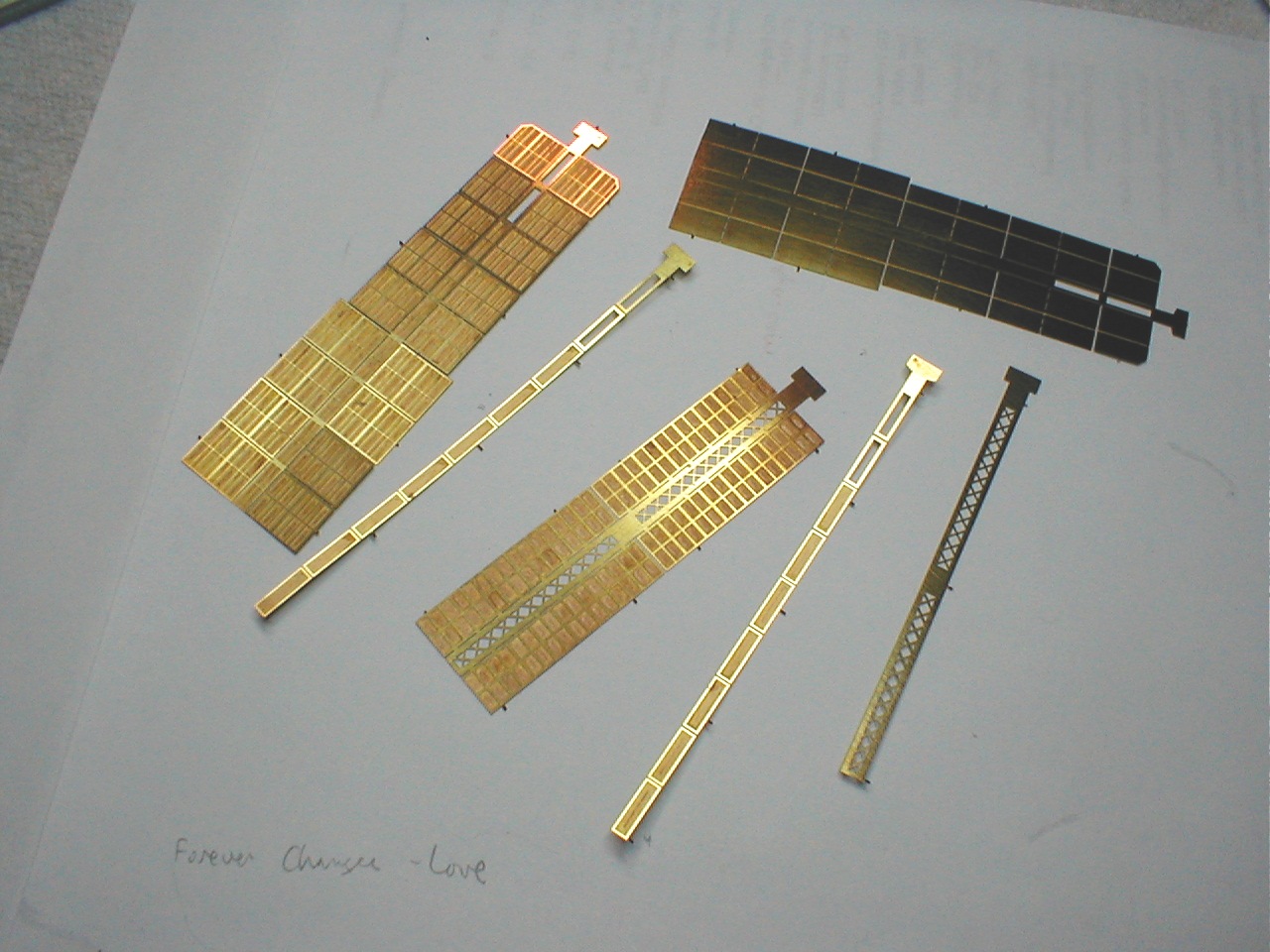

Here are a couple of Mir panels (the one on the left is used about eight times). The panel on the right is the center top array on the Mir core. It really needs to be accordian-folded, but since the central rib is the same piece, there is no way to reproduce that effect. Oh well, close enough. The stiffening center pieces are seen here, as well.
