Links to full sized, color versions of the photos used in the book are listed here. Click on the picture to have the images open in a new window. |
| SIM
#7 - LM Photos, Part 2 |
|
|
Links to full sized, color versions of the photos used in the book are listed here. Click on the picture to have the images open in a new window. |
| Section |
|
|
Comments |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

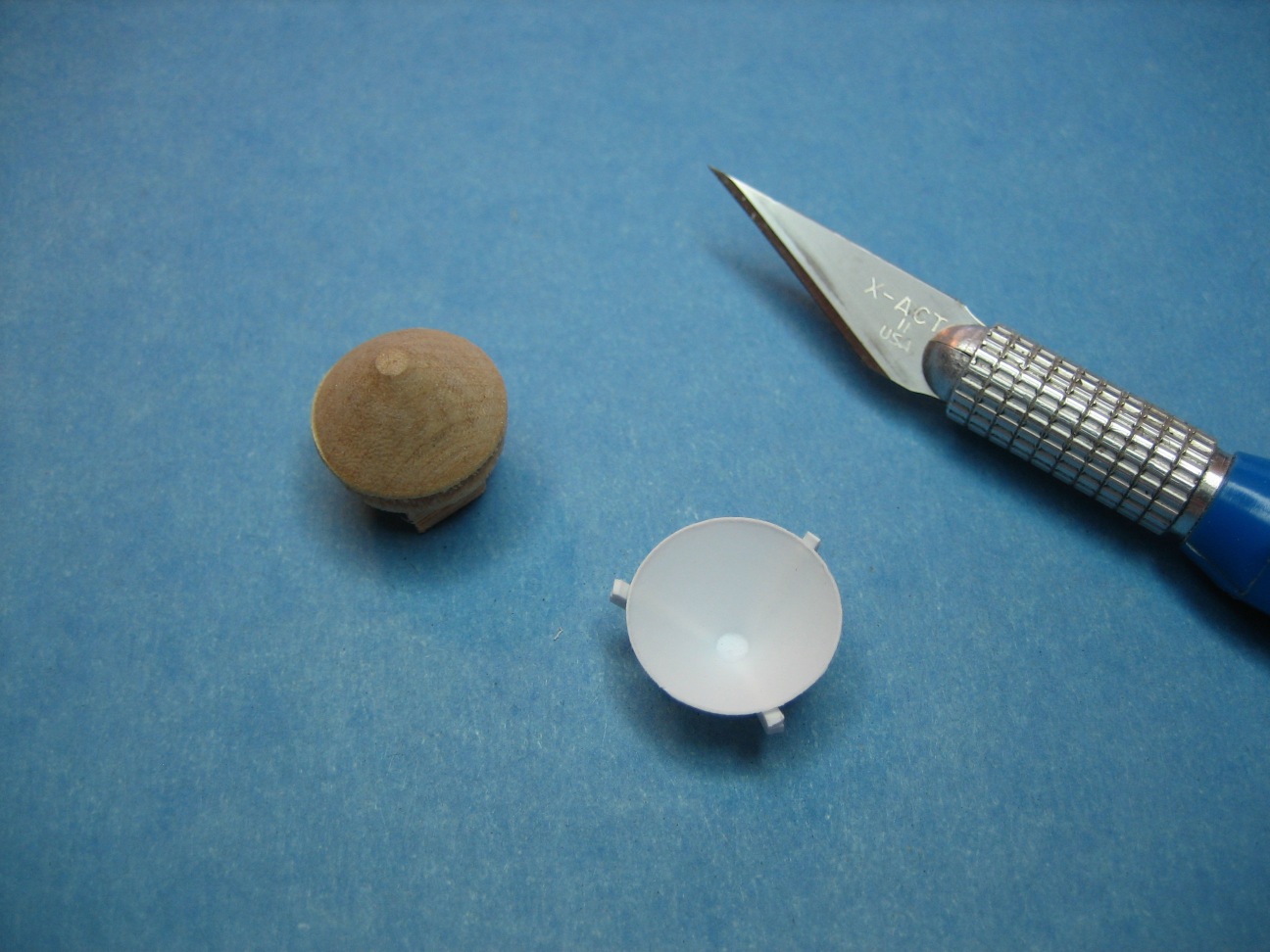

Vacuum-formed docking drogue. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |
The original docking target is at the left, with the scratchbuilt version on the right. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

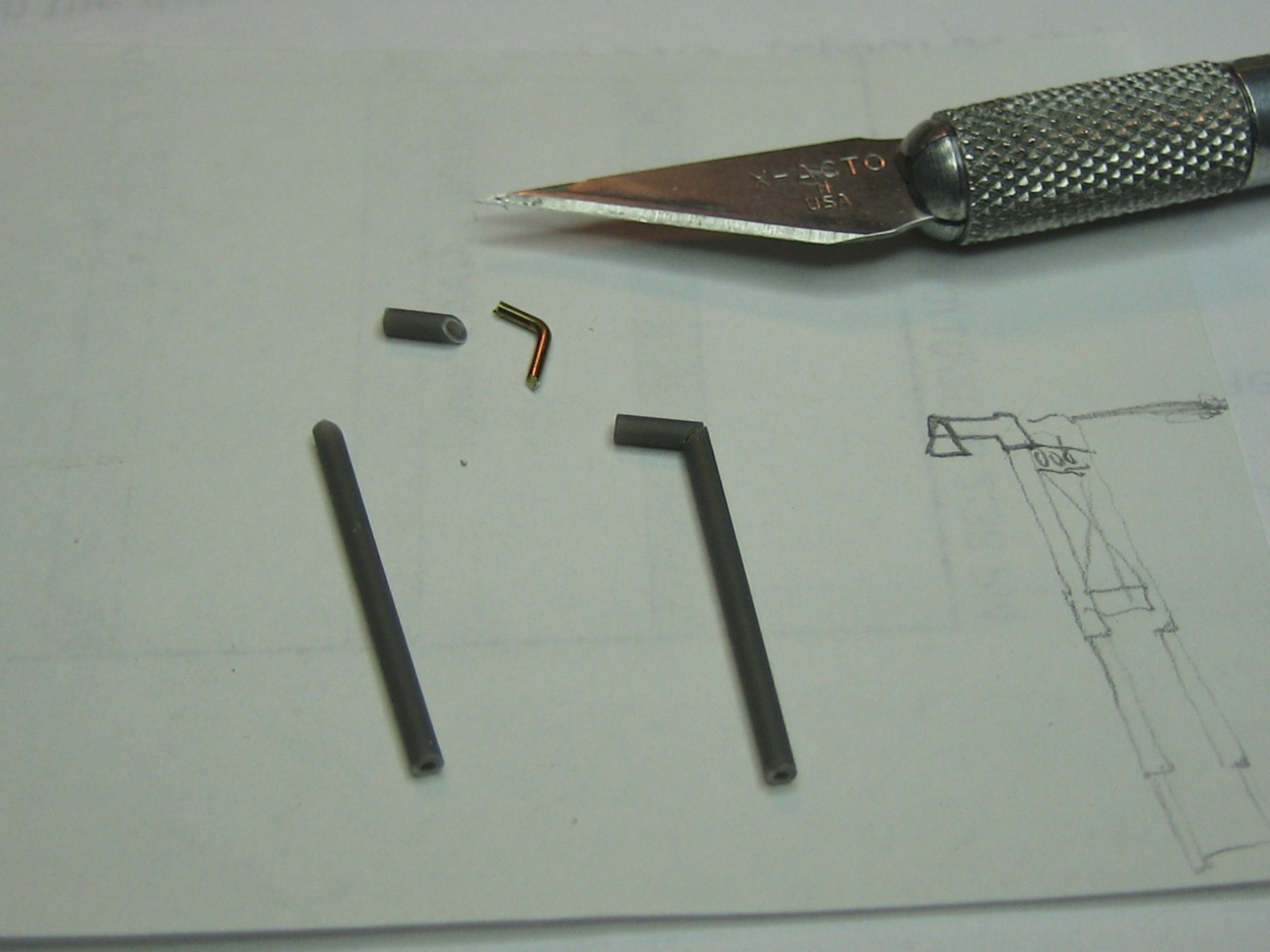

Parts for the LRV deployment system. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

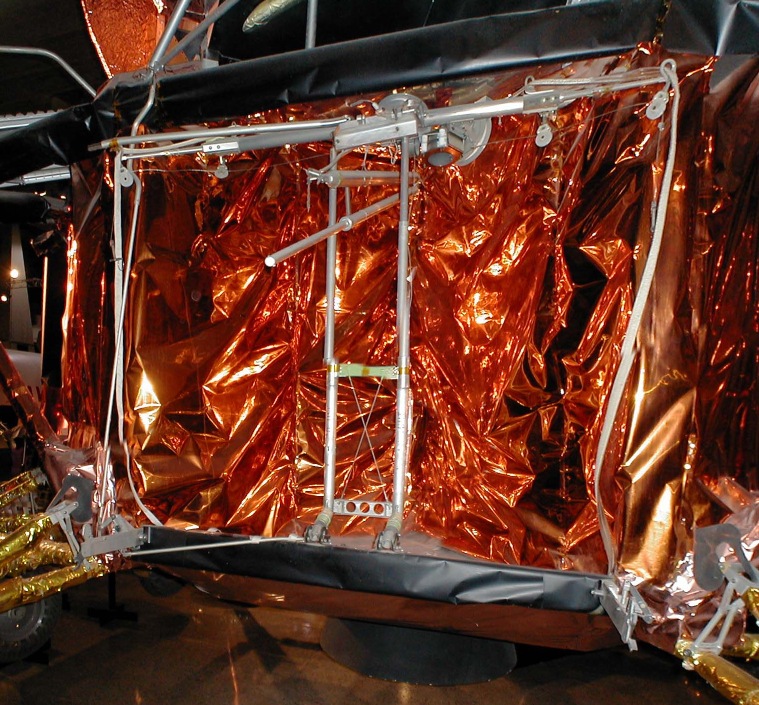

Composite photo of Quad I on the LM mock-up at the Space and Rocket Center in Huntsville. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

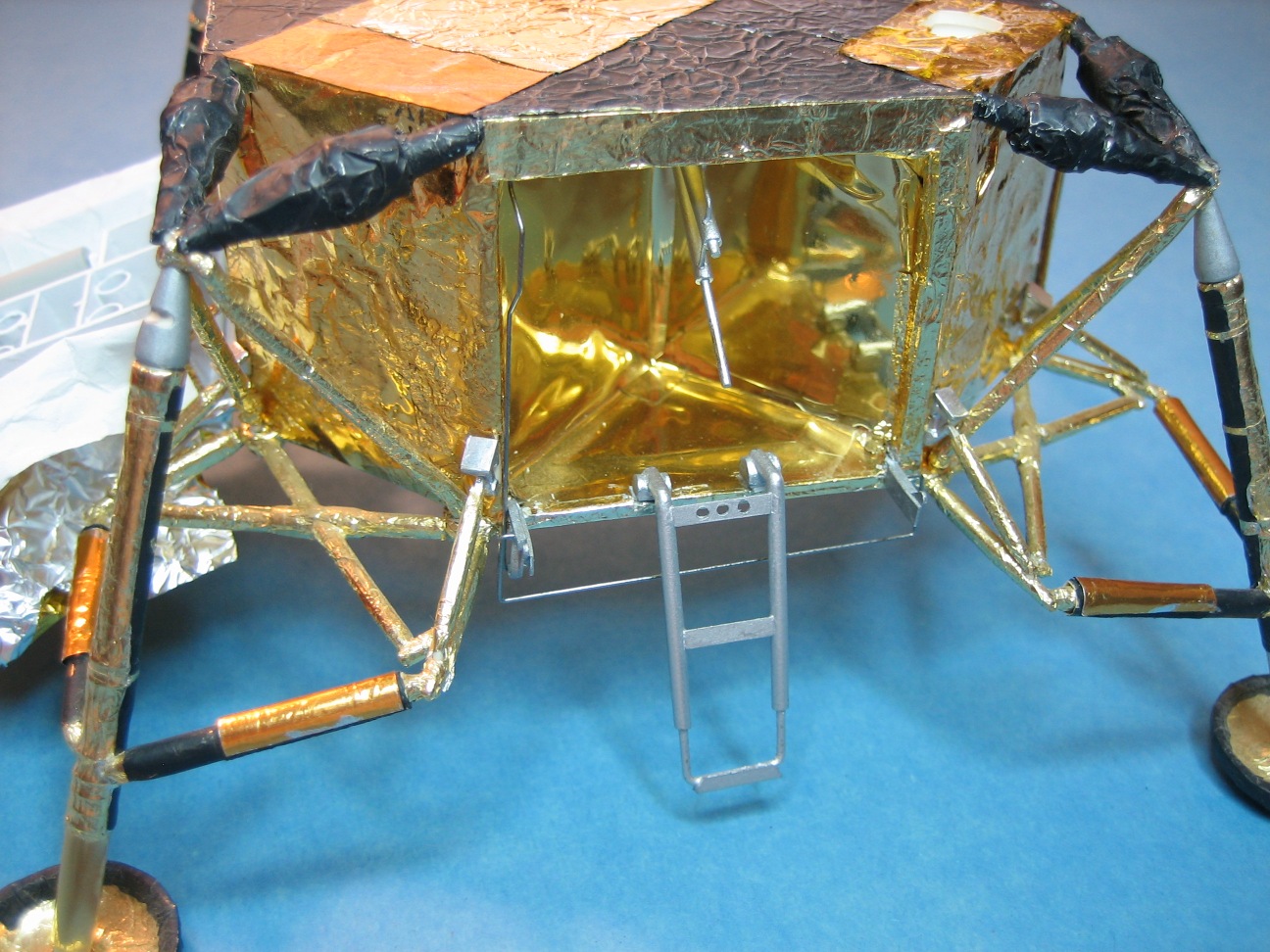

Completed Quad I Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |
RTG cask in work. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

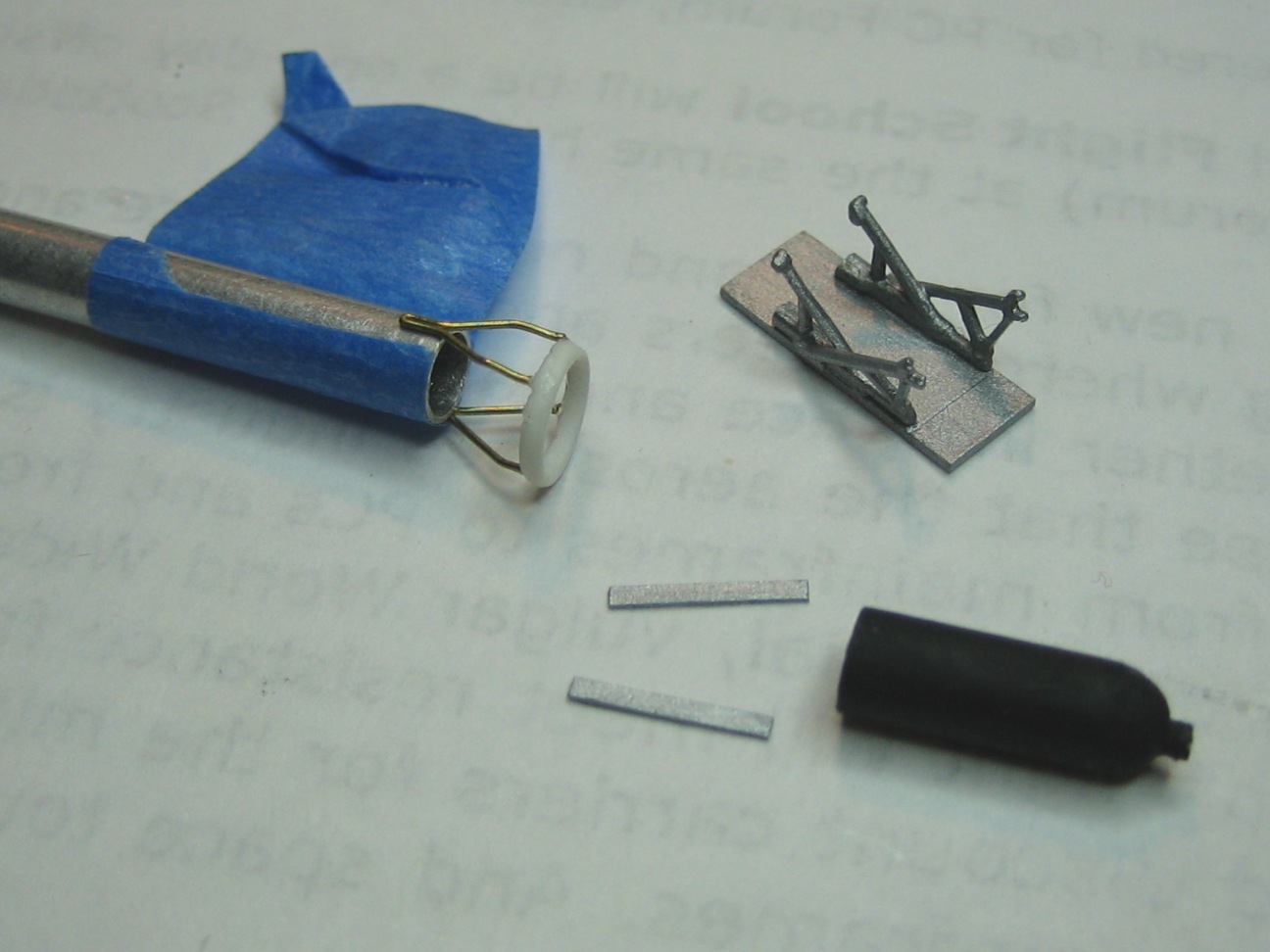

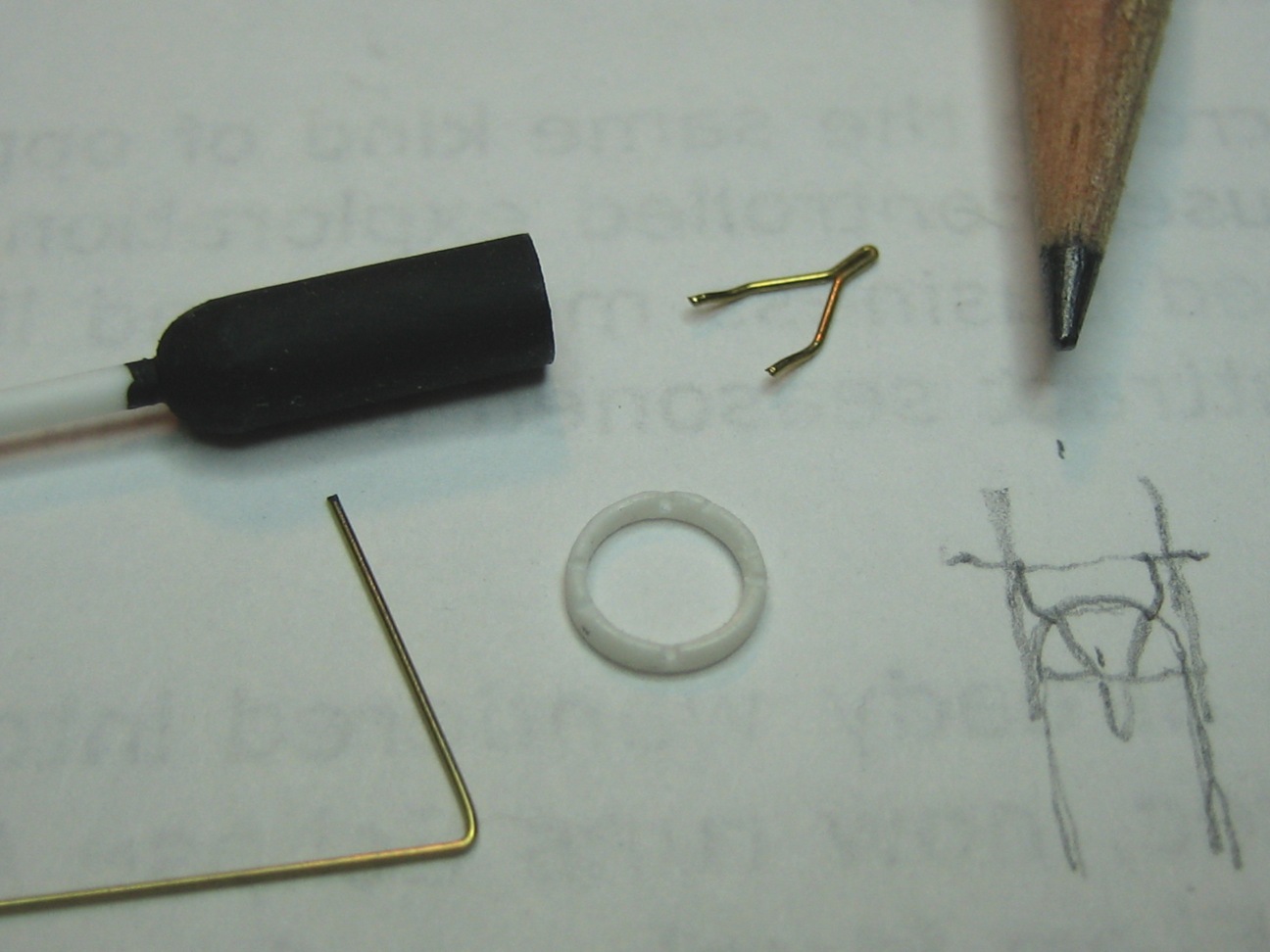

RTG cask has handle made of wire
and a plastic ring. Bomb rack braces were adapted for the support
structure. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

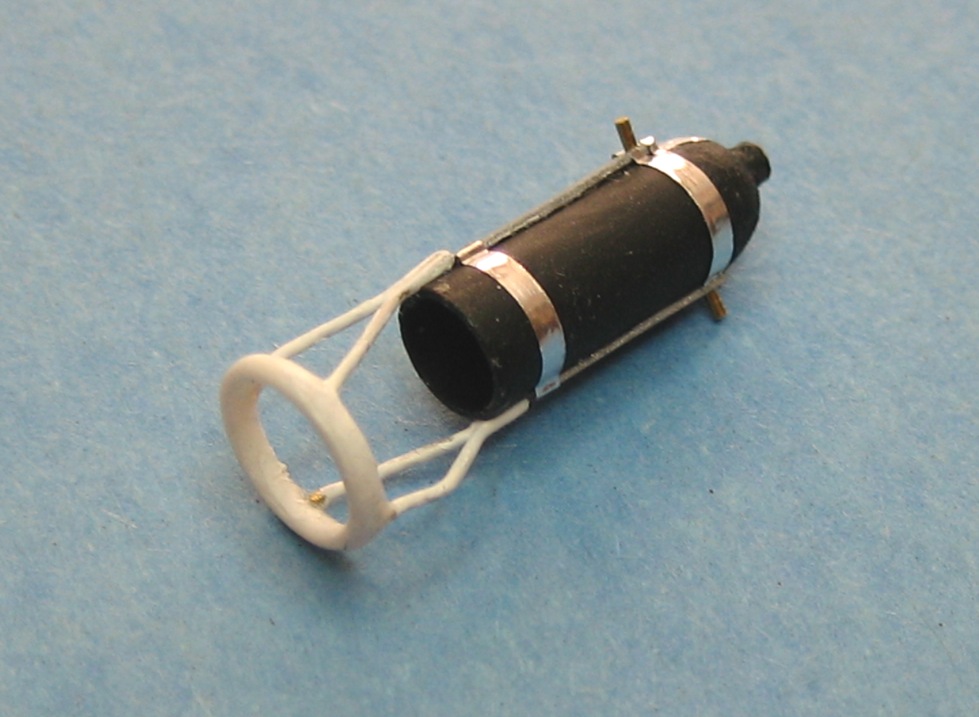

Completed RTG cask. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |
The Quad II ALSEP bay needed to be enlarged. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

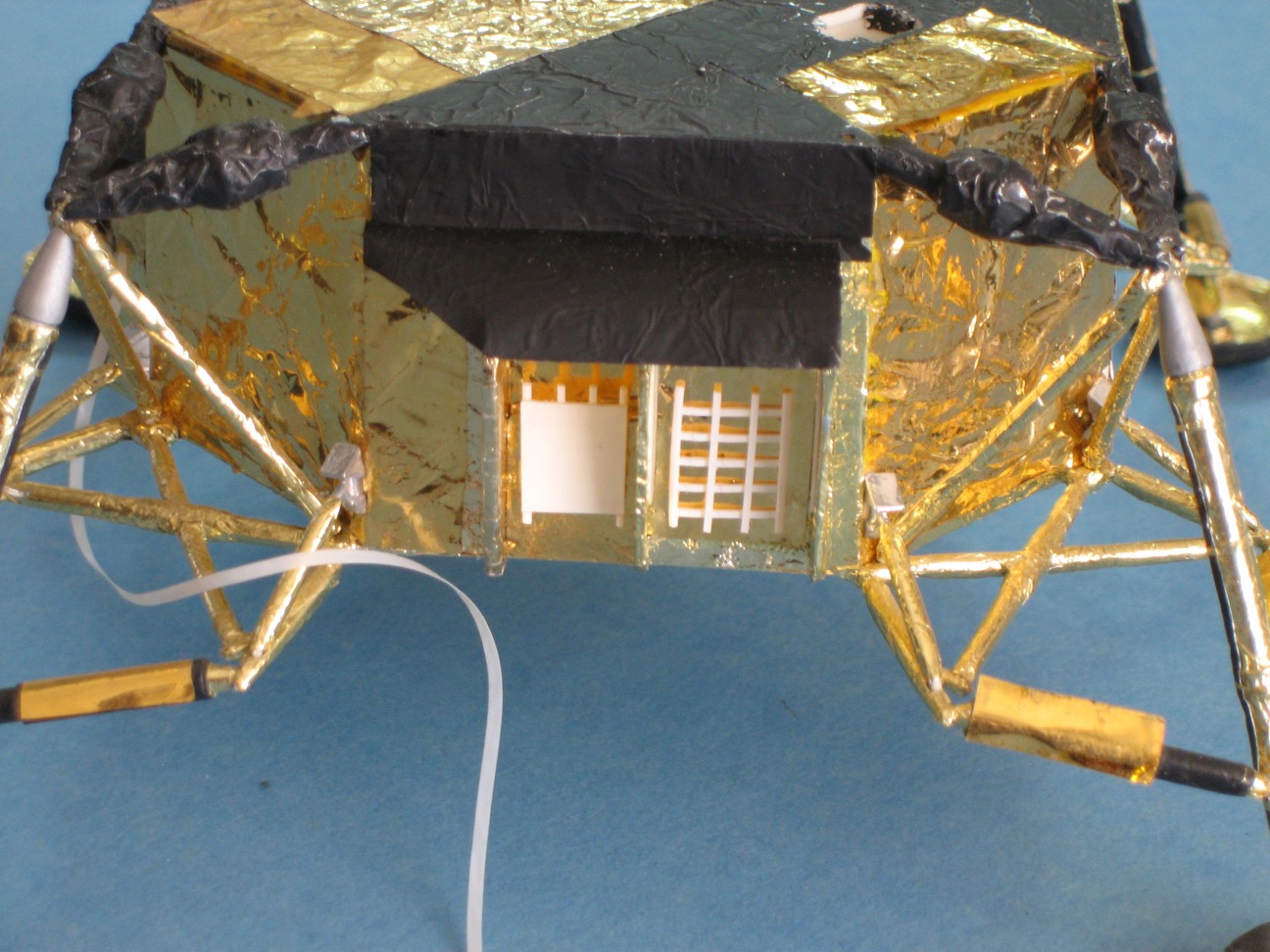

Completed Quad II ALSEP on the model. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

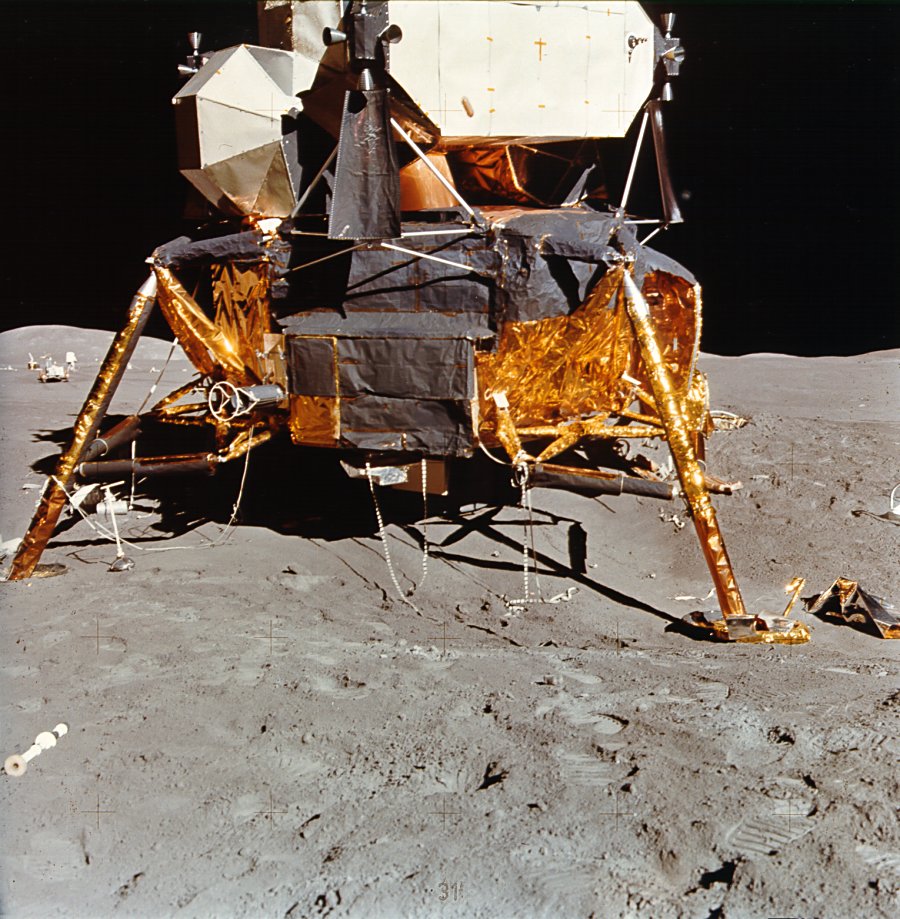

Similar view of Apollo 15 Quad II
and ALSEP. Note empty RTG cask at the left. NASA photo AS15-87-11839 |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

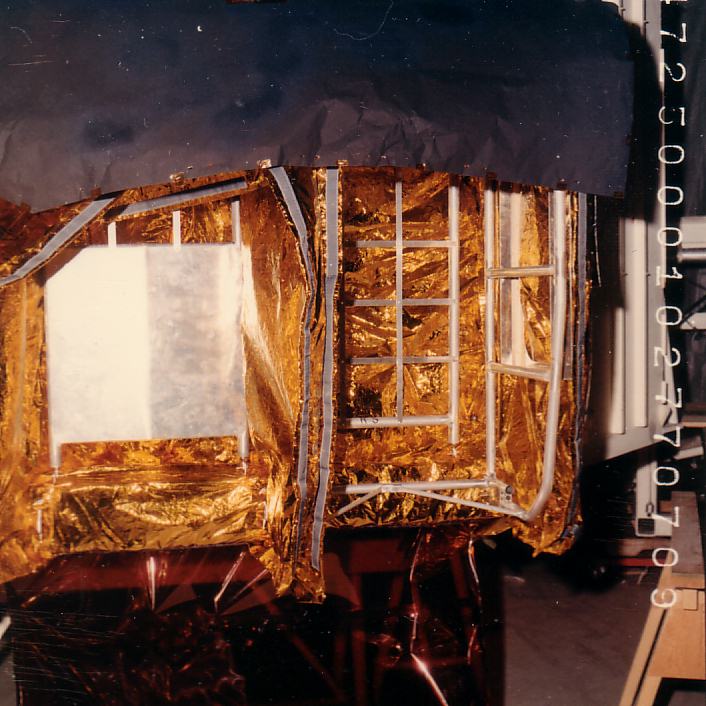

What is likely an engineering mock-up of an empty Quad III. Photo from Northrop Grumman History Center via Paul Fjeld |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

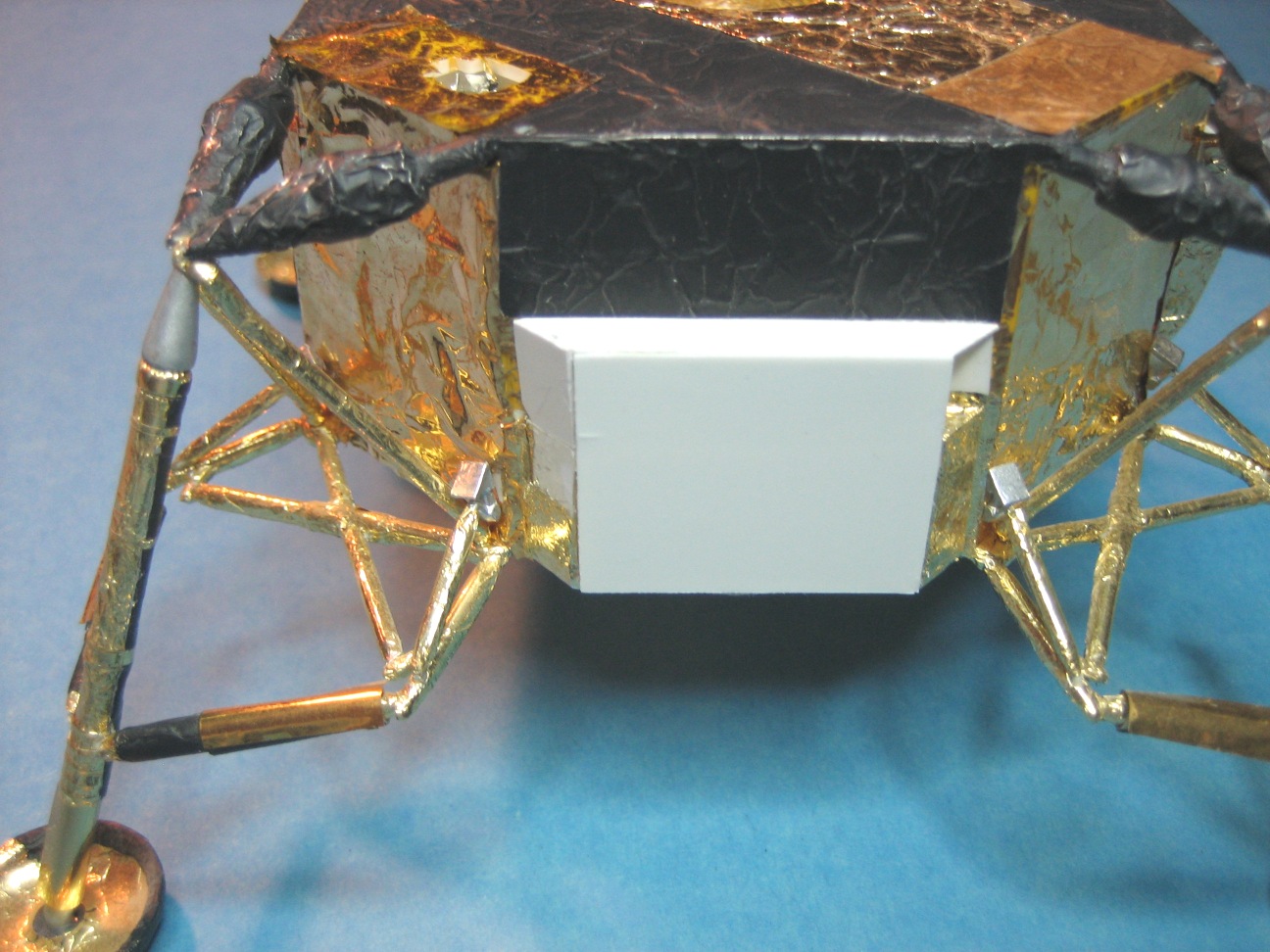

Completed Quad III. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

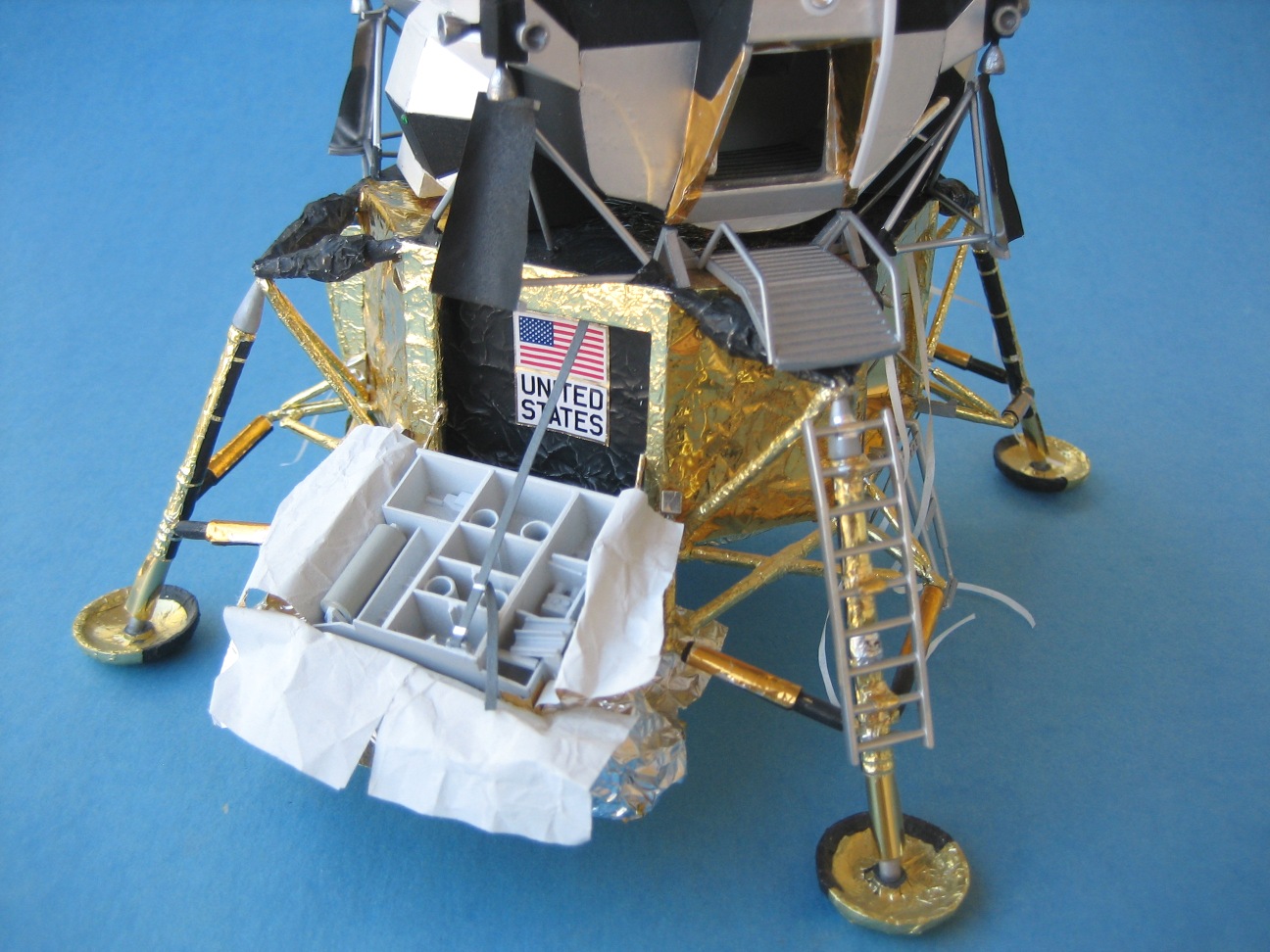

Completed Quad IV with scratch built MESA. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

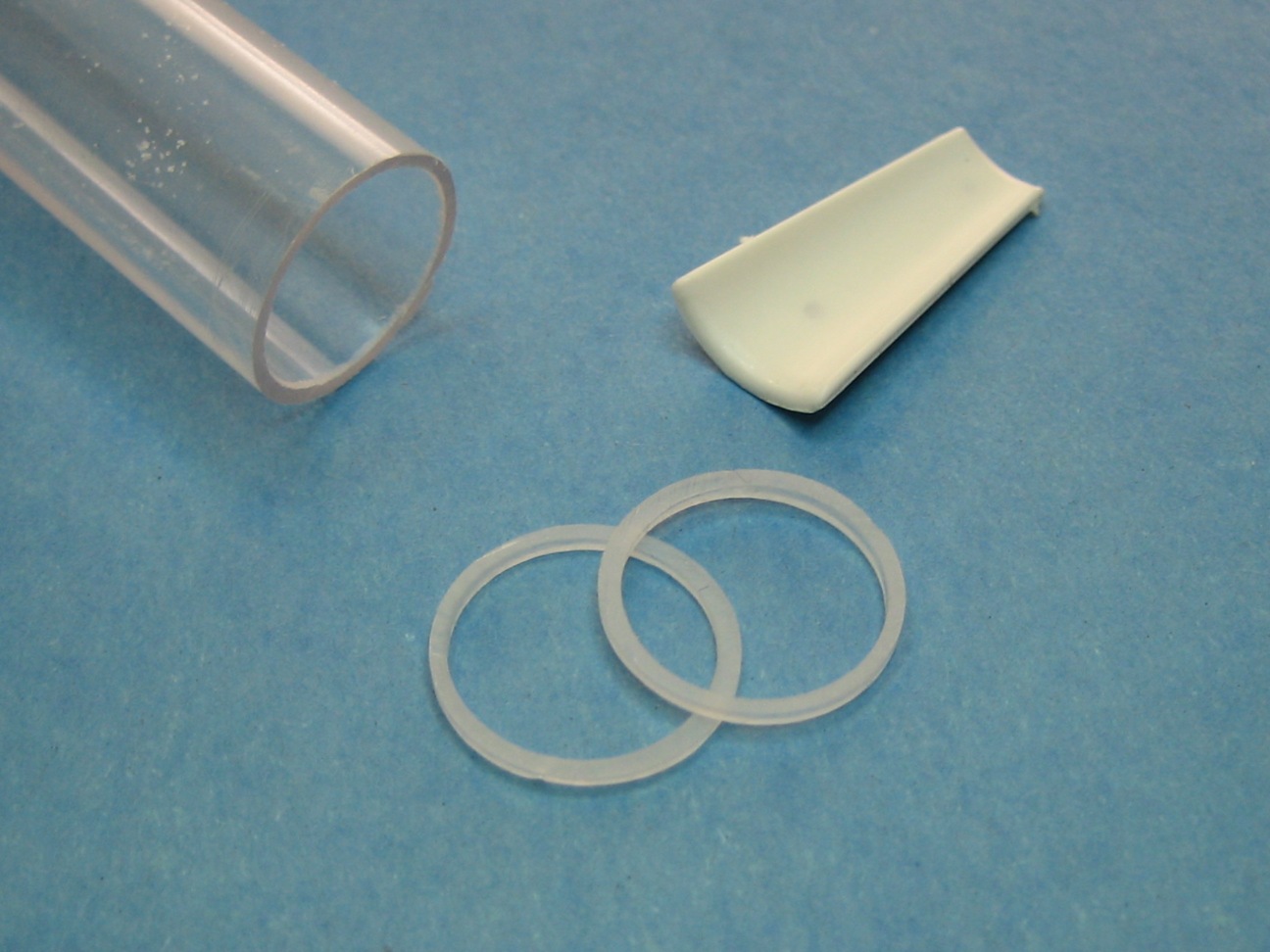

Thruster shields were replaced with upper and lower ends made from thin sections of a clear plastic tube. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

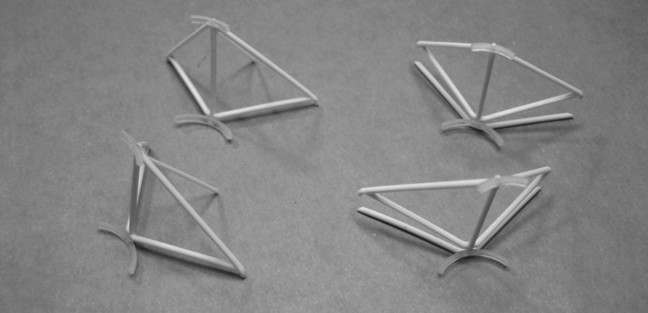

Thruster shield supports were slightly modified. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

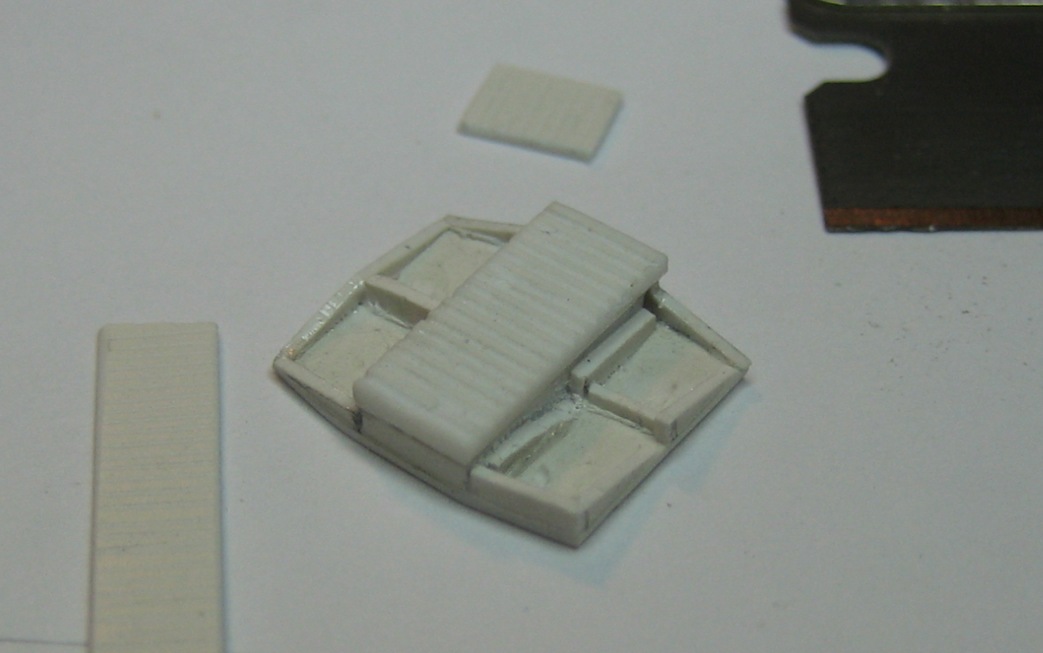

Landing radar was scratchbuilt. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

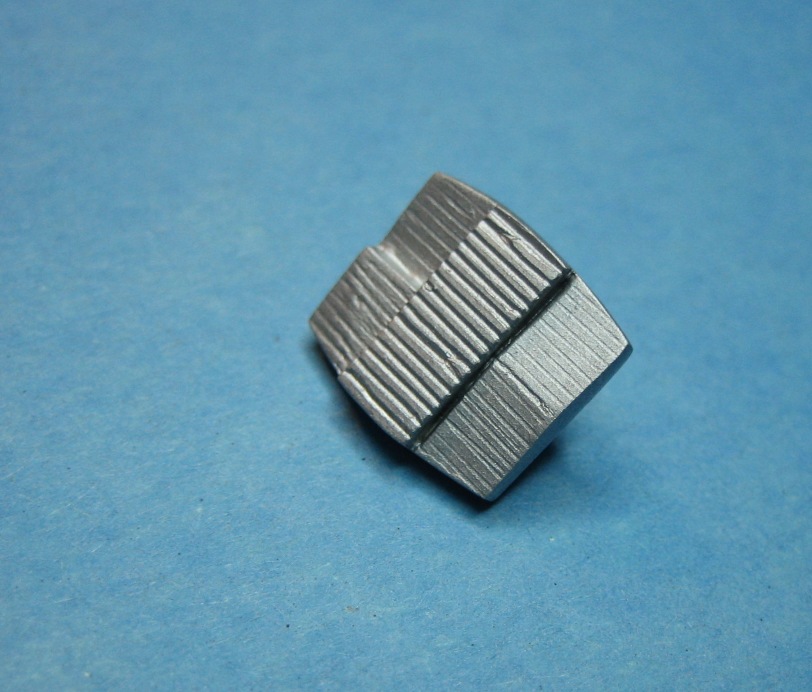

Completed landing radar. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

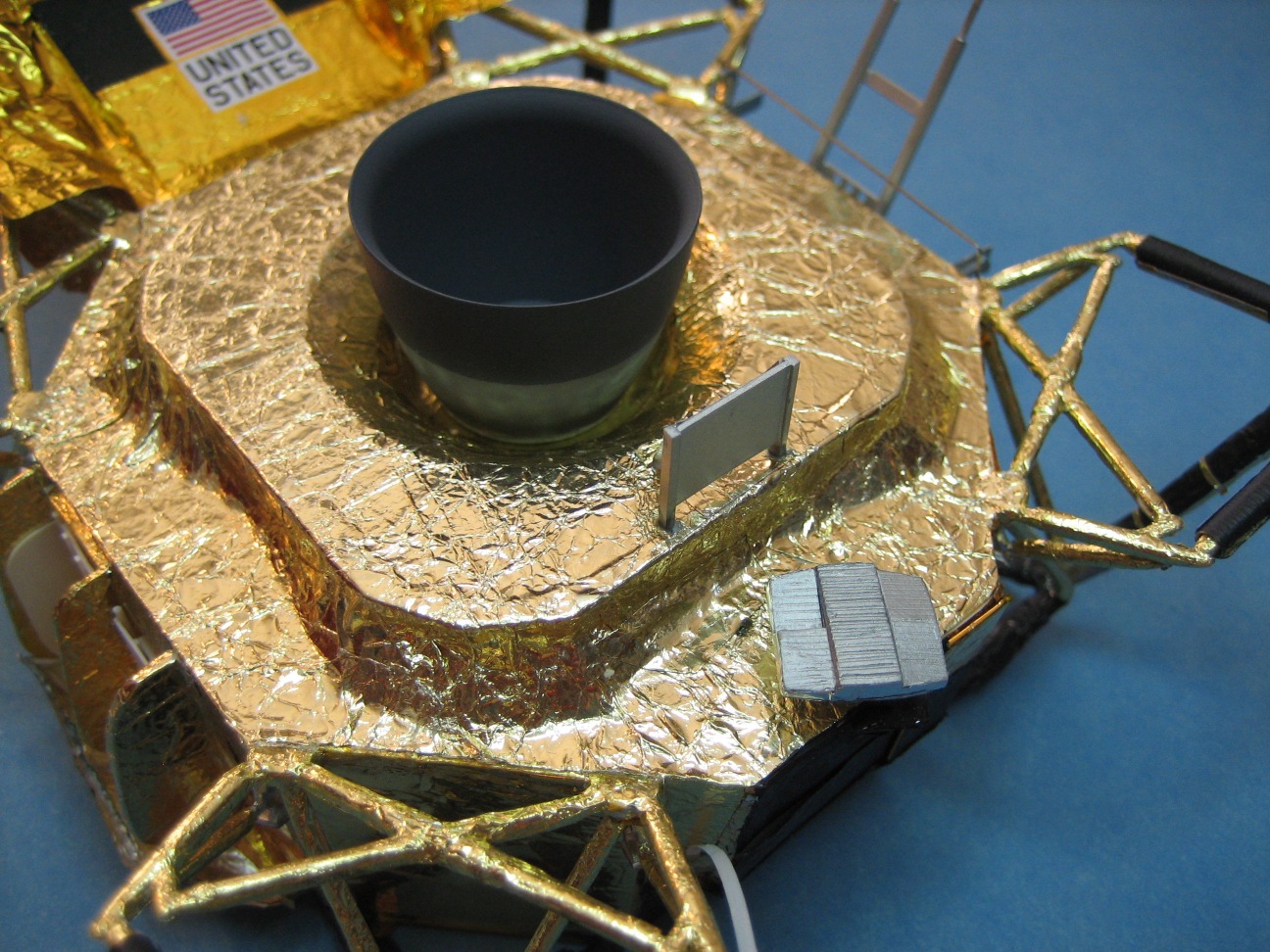

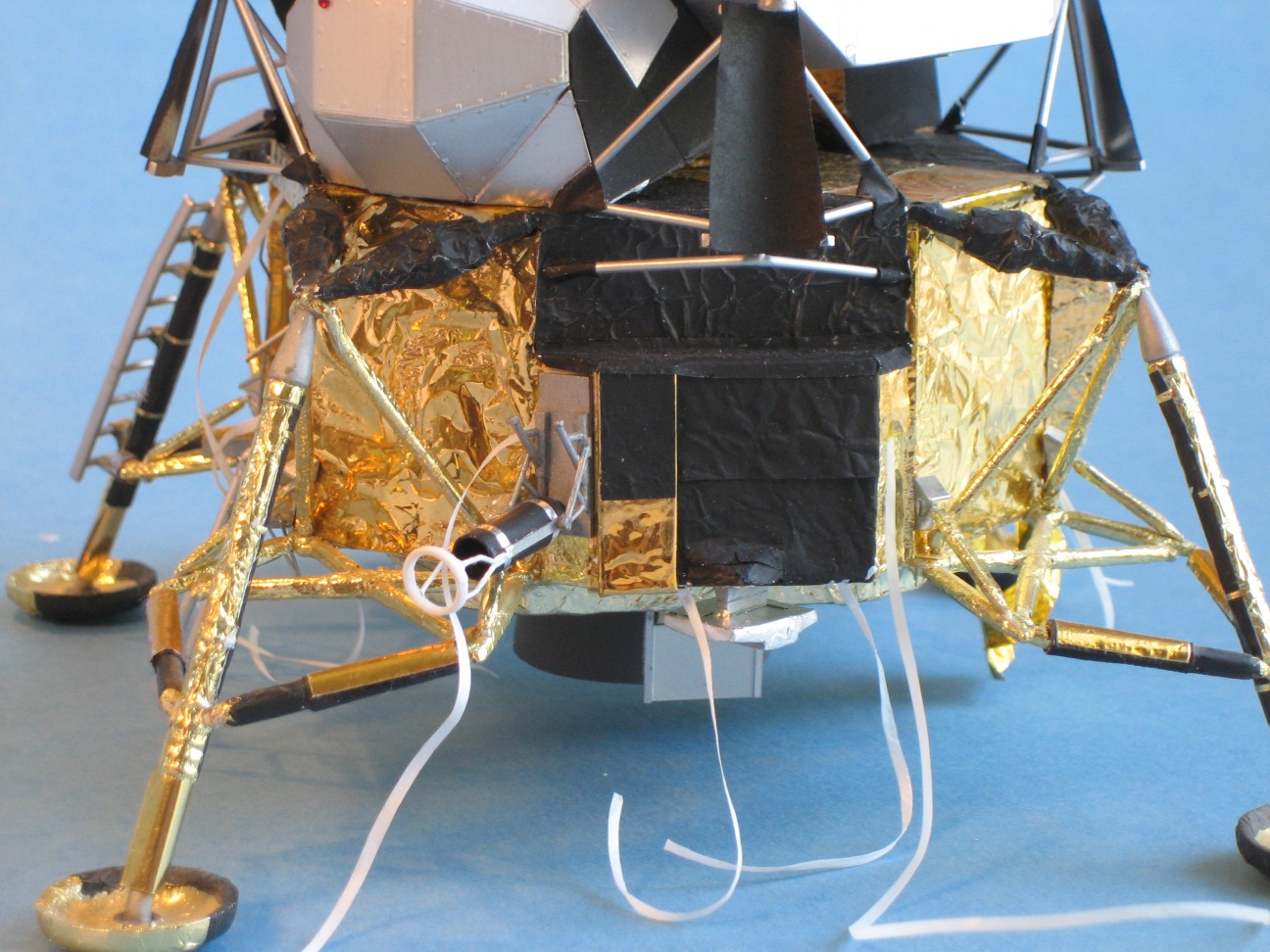

Underside of LM with radar and shield installed. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

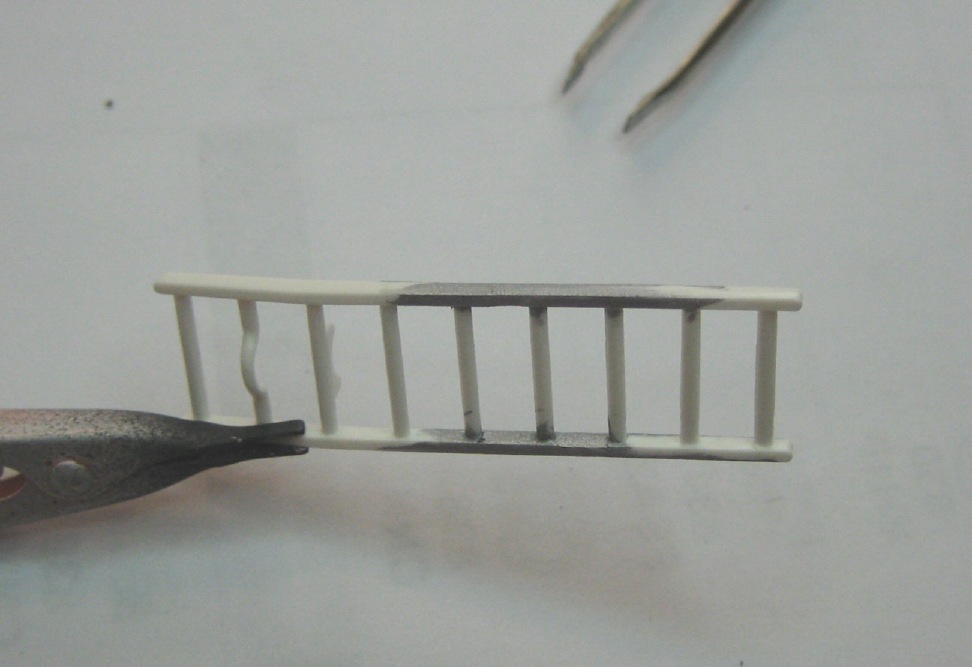

The kit ladder was shortened by one rung. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

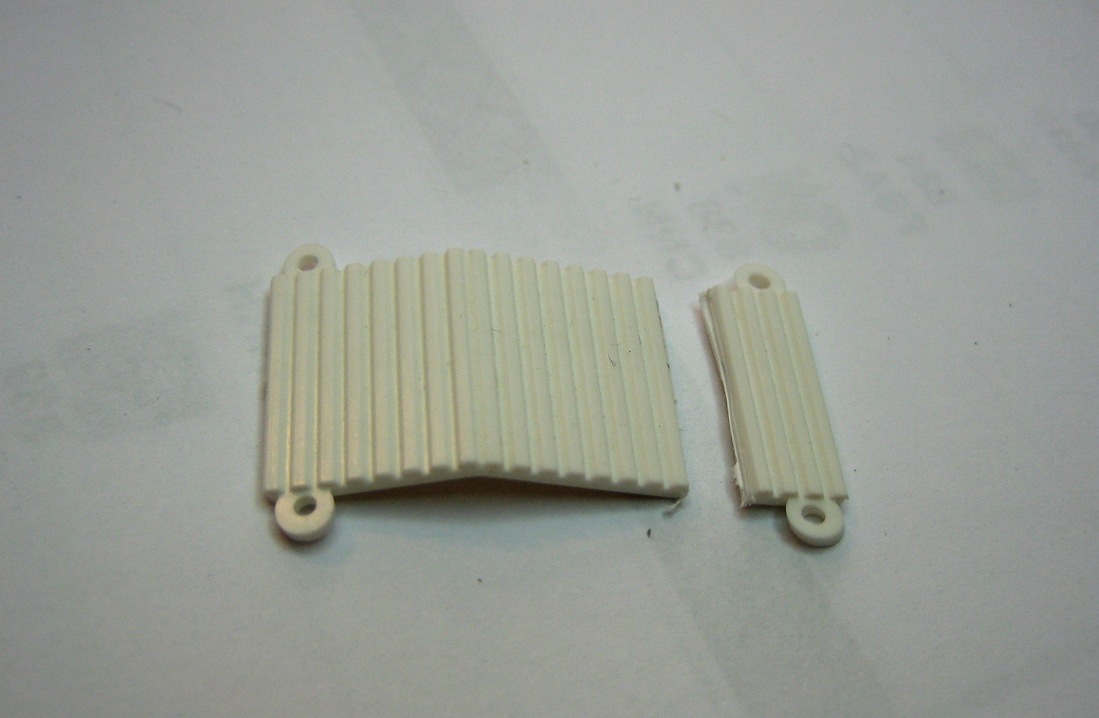

The porch was shortened and
cleaned up. Photo by M. Mackowski |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

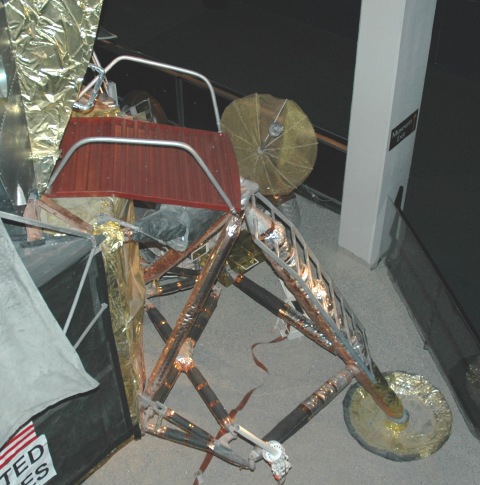

The LM at the Cosmosphere Museum
has a railing in each direction. The one near the top is
installed correctly. Photo by Mike Idacavage |
| Detailing the Monogram 1/48th Scale Kit |
|
 |

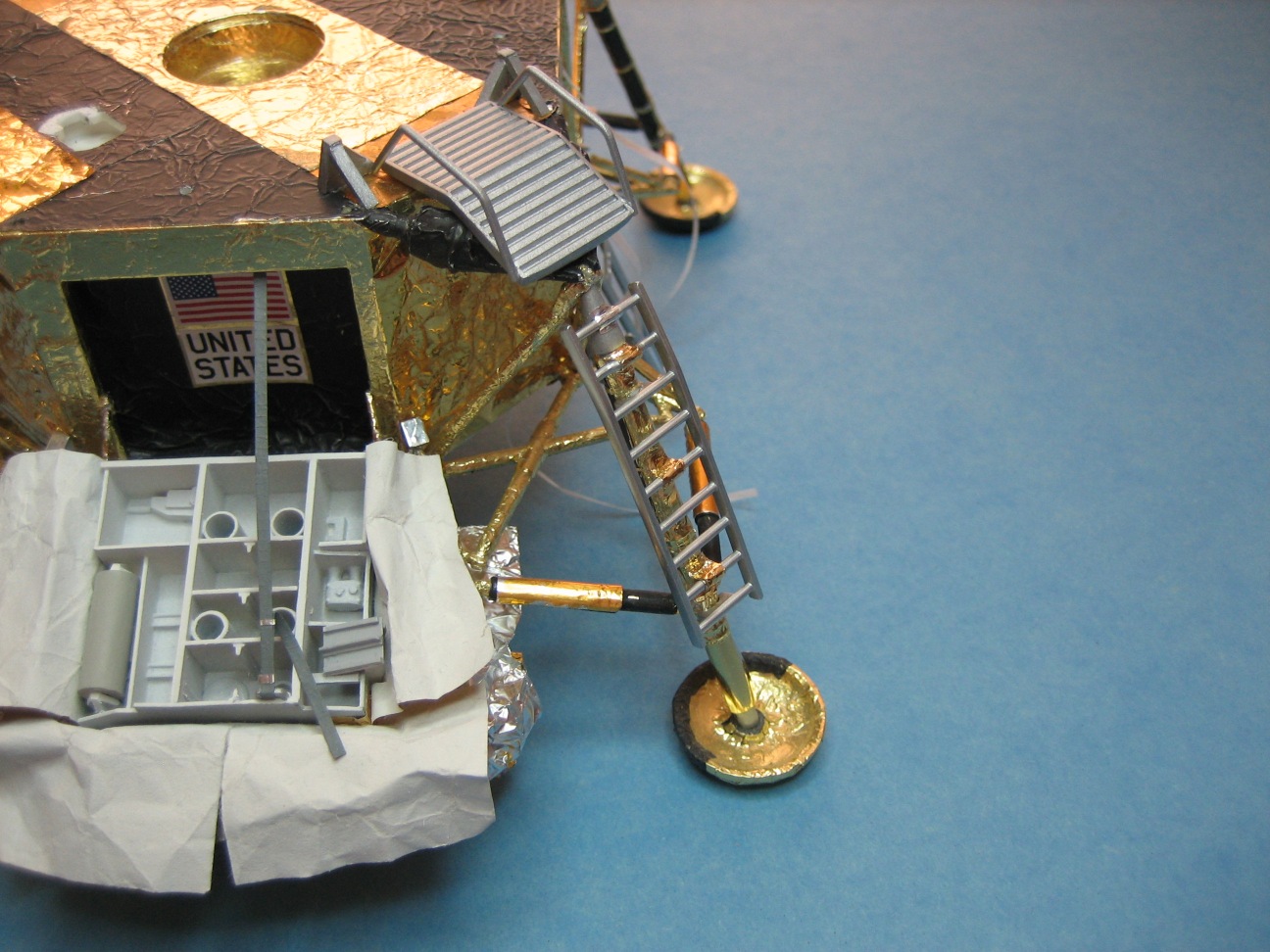

Porch installed on descent
stage. Note support points for ascent stage right behind porch. Photo by M. Mackowski |
| Kit Reviews |
|
 |

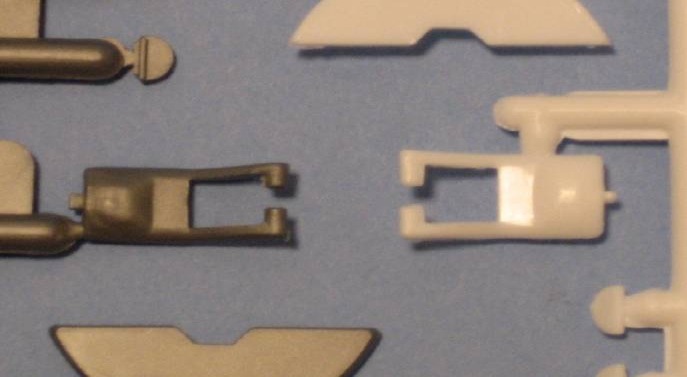

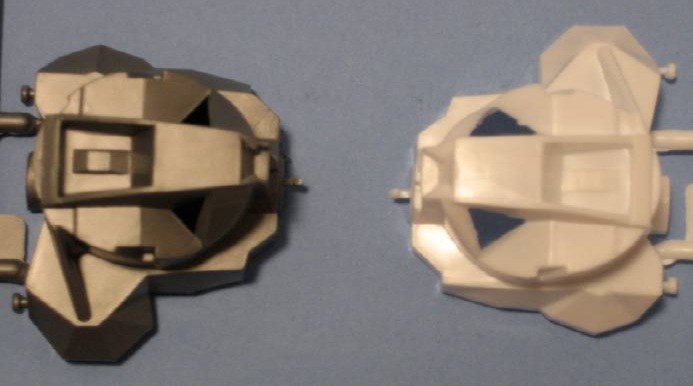

Revell 1/96th scale kit was
issued with various revisions. Left hand version is the original
late 1960s version while a mid-1990s version from their Saturn V is on
the right. Photo by R. Rodriguez |
| Kit Reviews |
|
 |
Revell 1/96th scale kit was
issued with
various revisions. Left hand version is the original late 1960s
version while a mid-1990s version from their Saturn V is on the right. Photo by R. Rodriguez |
